Combobox Exercise

Recipe

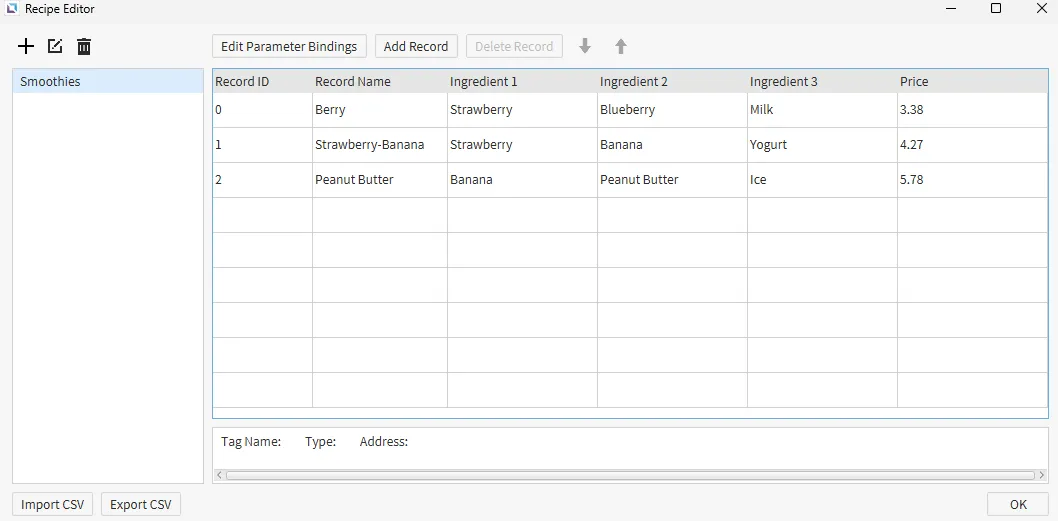

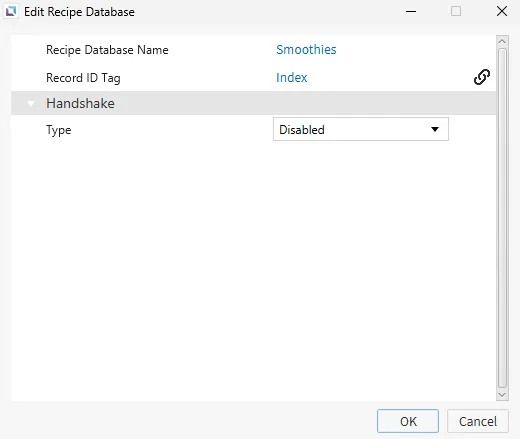

This example will utilize the Recipe Editor. Create a new recipe named Smoothies. Add Index as the Record ID Tag. Add four different parameter bindings: Ingredient 1, Ingredient 2, Ingredient 3, and Price. Create three different records with three different ingredients and prices for each one.

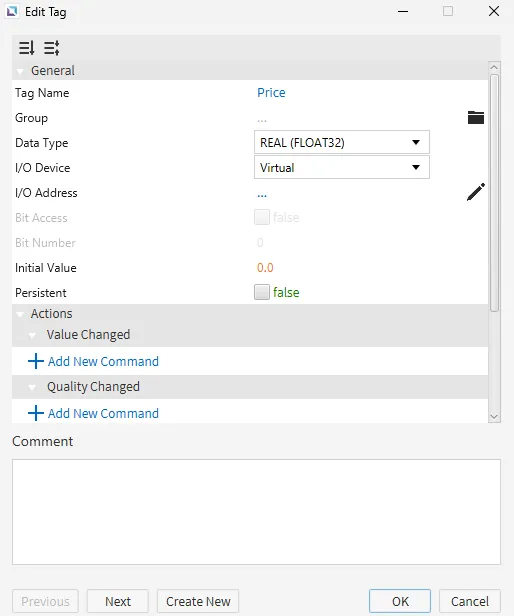

Bind a tag to each parameter to prevent an error warning. The tags don't have to be used.

Script

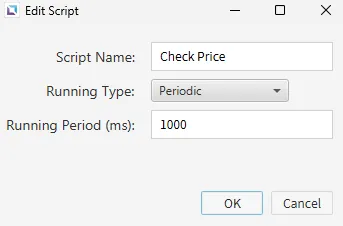

This example also utilizes the Script Editor. Create a script named Check Price with the Running Type set to Periodic.

Check Price Code::

if (tag.read("Index") != -1) {
	tag.write("Price", recipe.getParameter("Smoothies", tag.read("Index"), 3));
}

This script checks if the Index tag is NOT -1 and writes the corresponding price from the record ID to the Price tag.

Project Setup

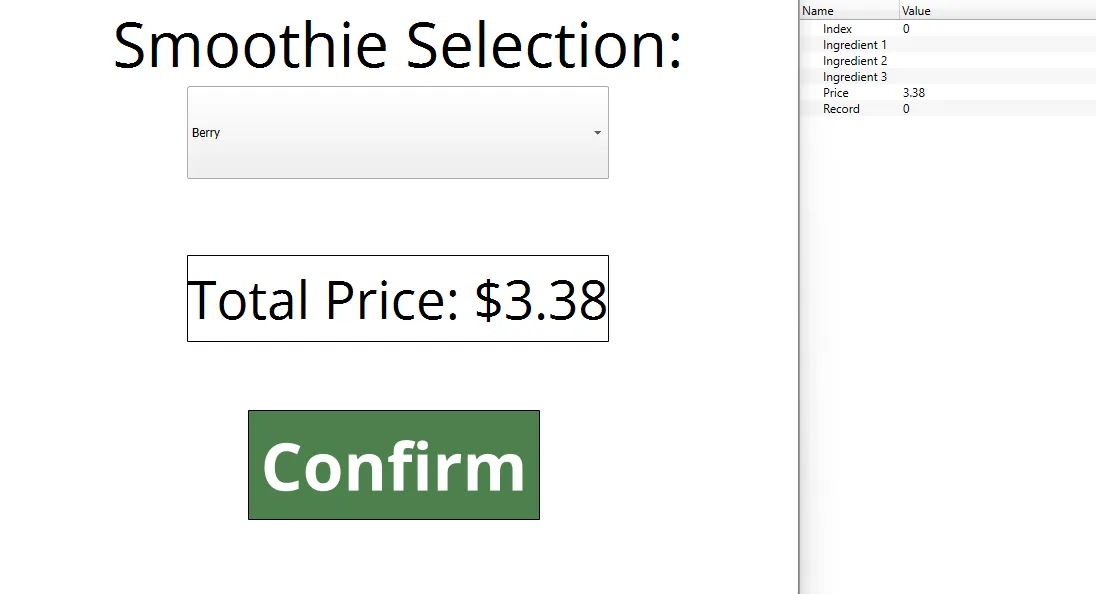

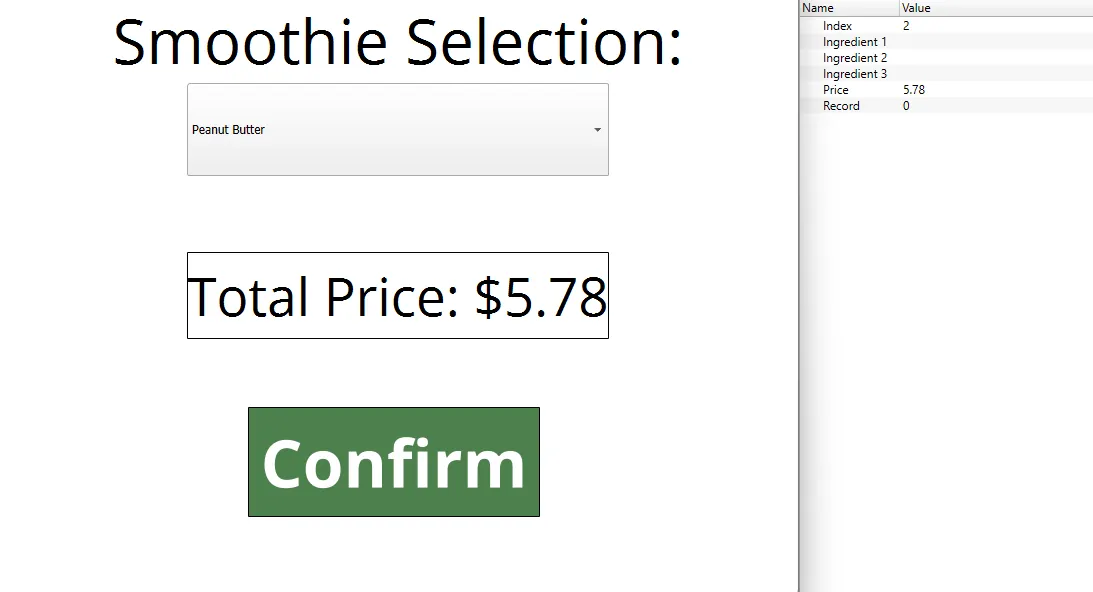

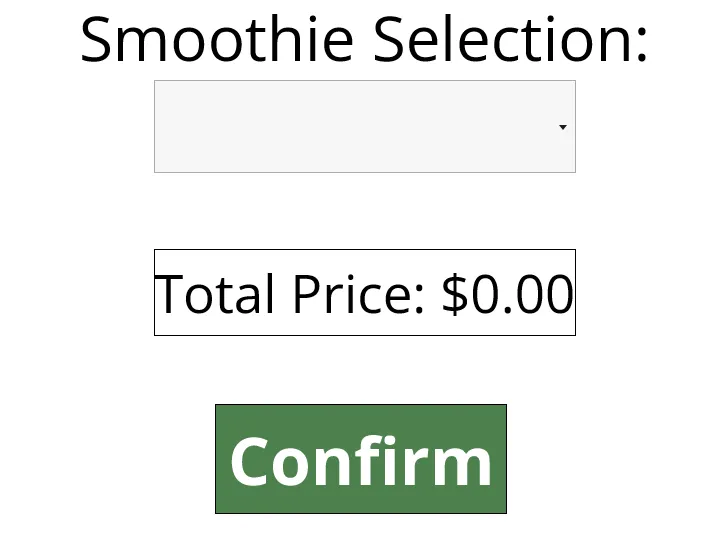

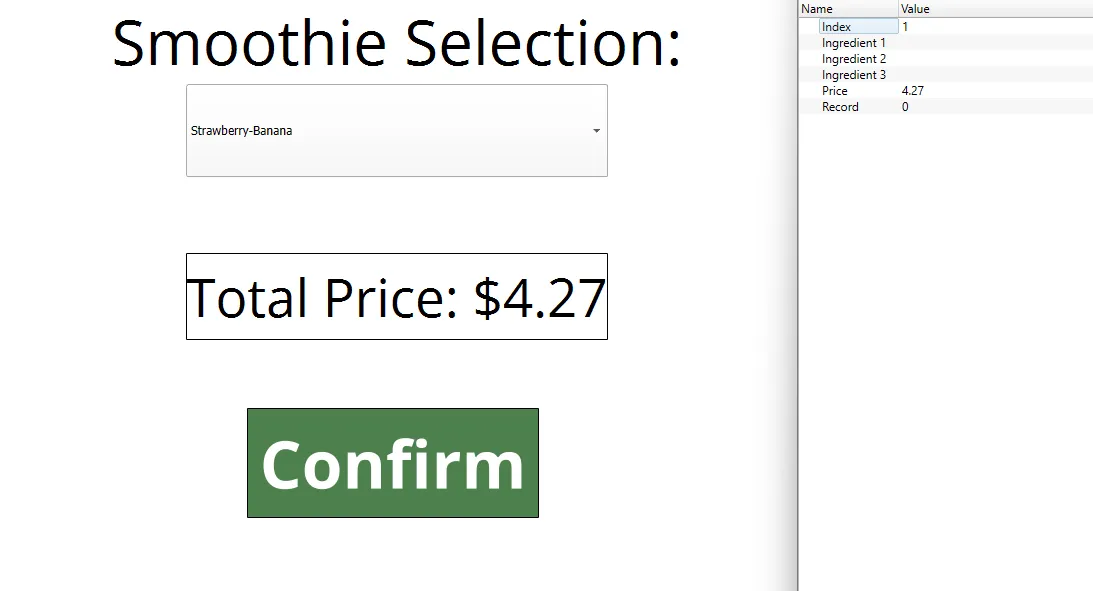

Set up the project to look like the below image. The project utilizes the combobox object, numeric label object, and a few label objects.

ComboBox

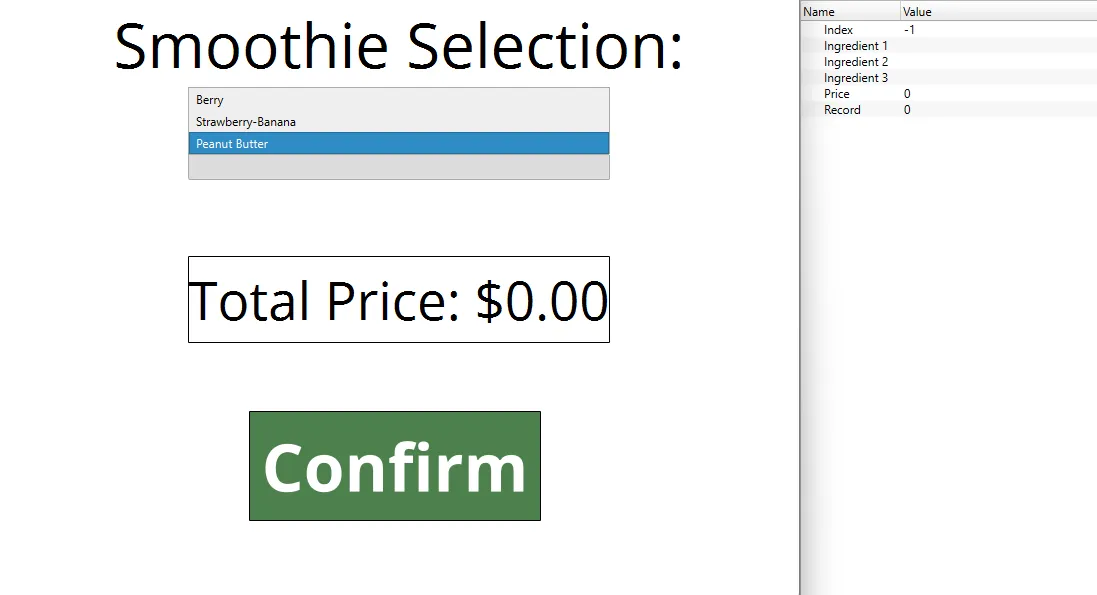

For the combobox object, bind the Index tag to the Index field. Add three choices: Berry, Strawberry-Banana, and Peanut Butter. These correspond to the record names in the recipe.

Numeric Label

For the numeric label object, bind the Price tag to the Value field. In the Format section, set the Decimal Places to 2, enable Use Leading Zeros, and set Leading Zeros to 1. Set the Prefix to Total Price: $.

Label

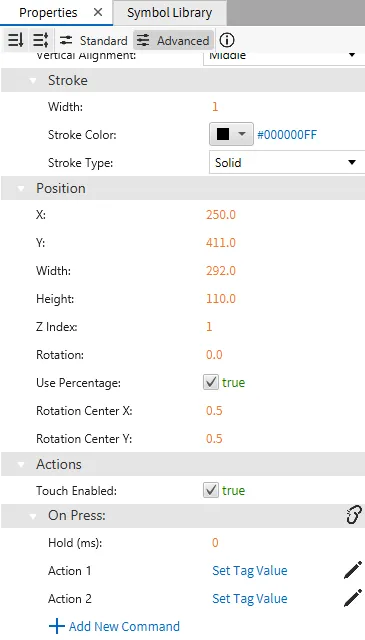

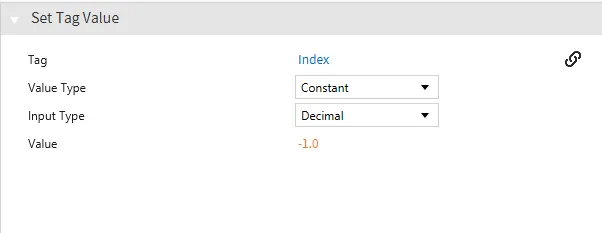

For the label object that displays Confirm, add two On Press actions: Set Tag Value for the Index tag to -1.0 and Set Tag Value for the Price tag to 0.0.
