CIMON-Canvas v4.4.0

System Time

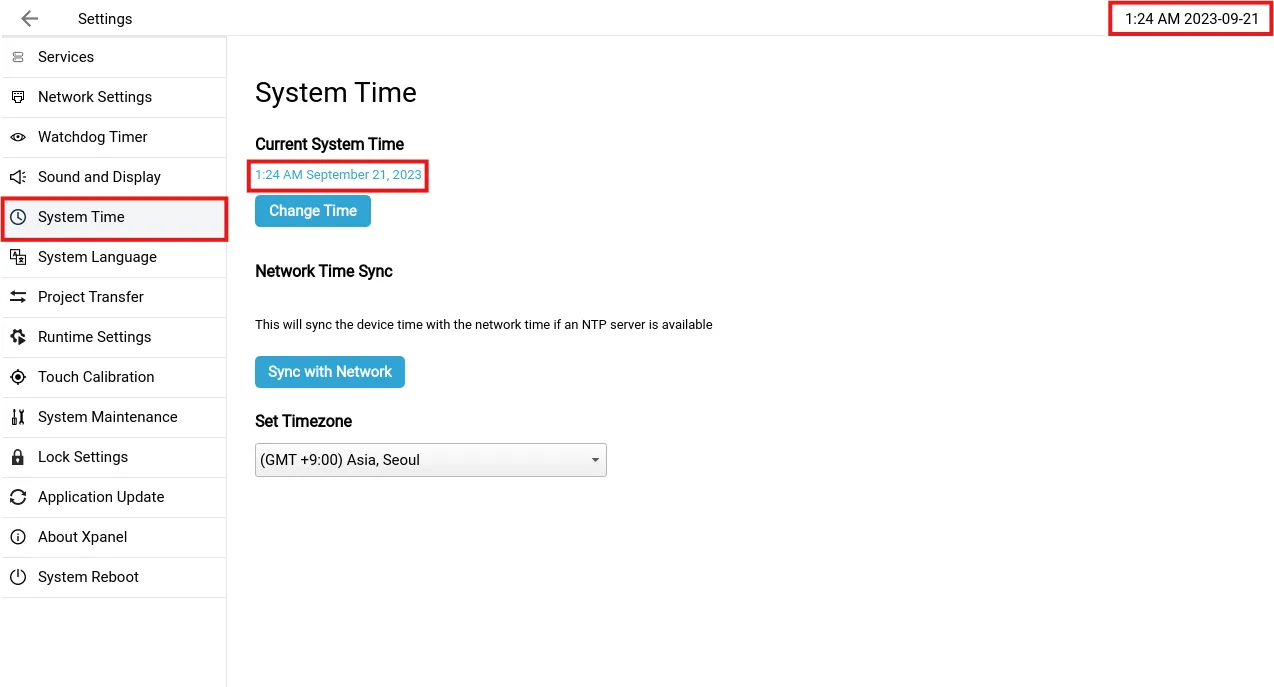

System Time Menu

To view or change the Xpanel's time and date settings, click System Time. The current time will be displayed under Current System Time or in the top-right corner of the Xpanel.

Change Time

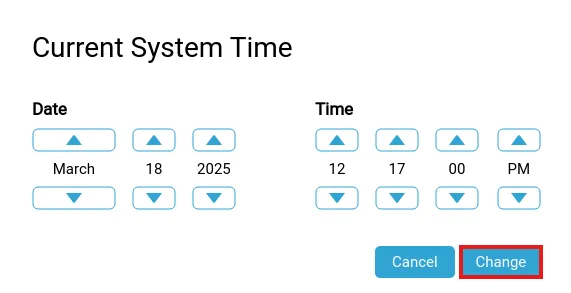

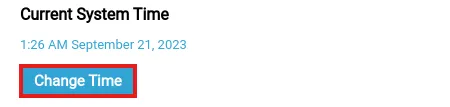

In order to change the Xpanel's time and date, select Change Time and enter the specified time and date. Select Change to confirm.

Network Time Sync

If the Xpanel is connected to a device with access to a network time protocol (NTP) server and this option is selected, the Xpanel will sync its date and time with the NTP server. To sync the time and date with a computer that offers a local NTP server, use an Ethernet cable and configure the LAN port settings.

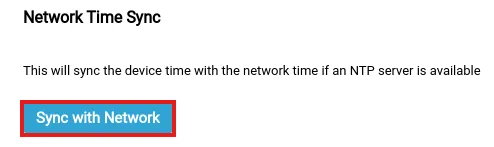

Click Sync with Network.

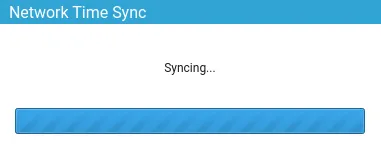

When the Xpanel is connecting to the NTP server, the syncing bar will display.

After attempting to sync with the NTP server, the Xpanel will display a success or failure message.

Note: the Xpanel will sync with the timezone specified in the set timezone section.

Set Timezone

Specify the timezone to be used by selecting the timezone in the Set Timezone section.
