Network Settings

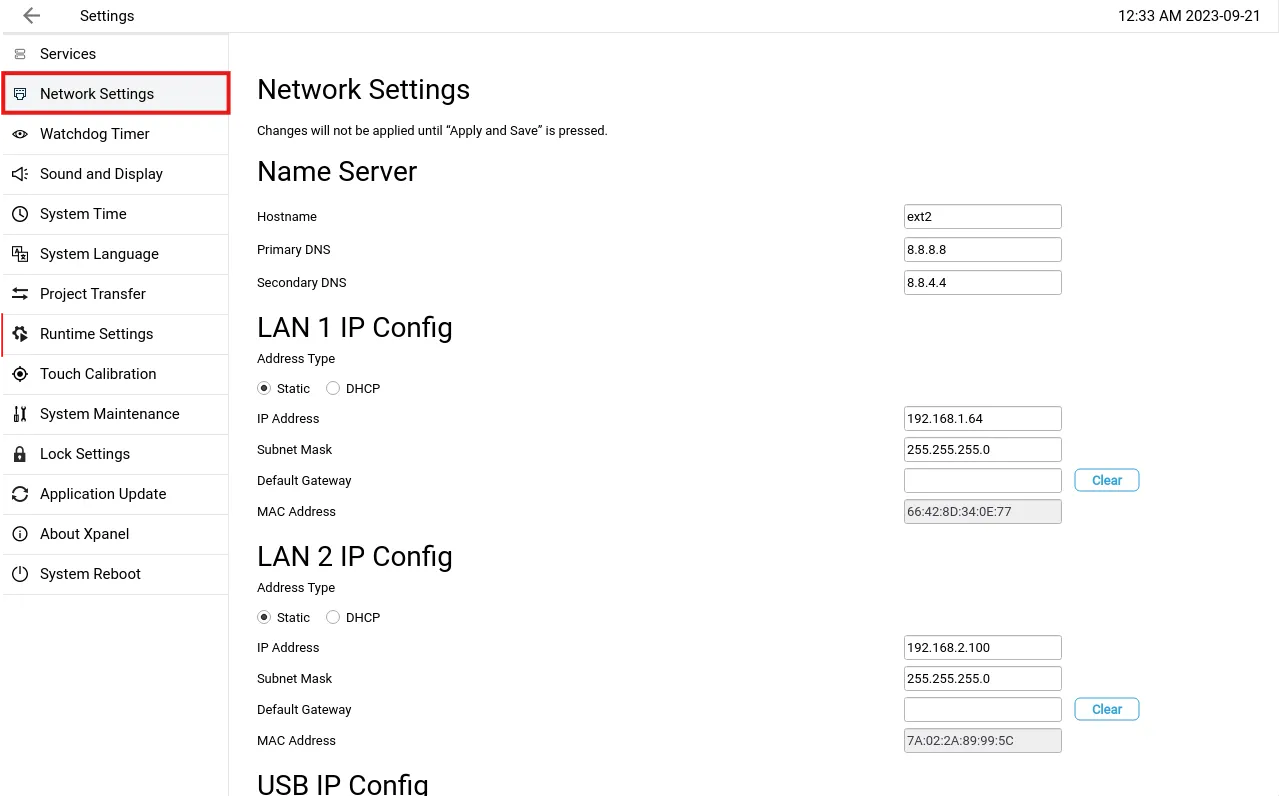

Network Settings Menu

To change the Xpanel's network settings, click Network Settings.

Grayed out fields cannot be edited.

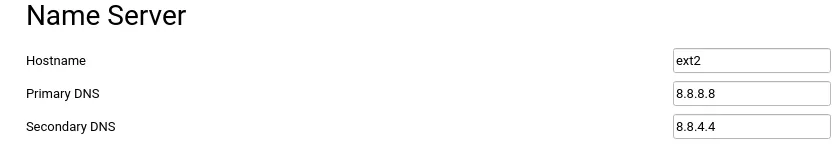

Name Server

The name server section includes the hostname and the primary and secondary DNS servers. The hostname field is how the Xpanel is named to other devices.

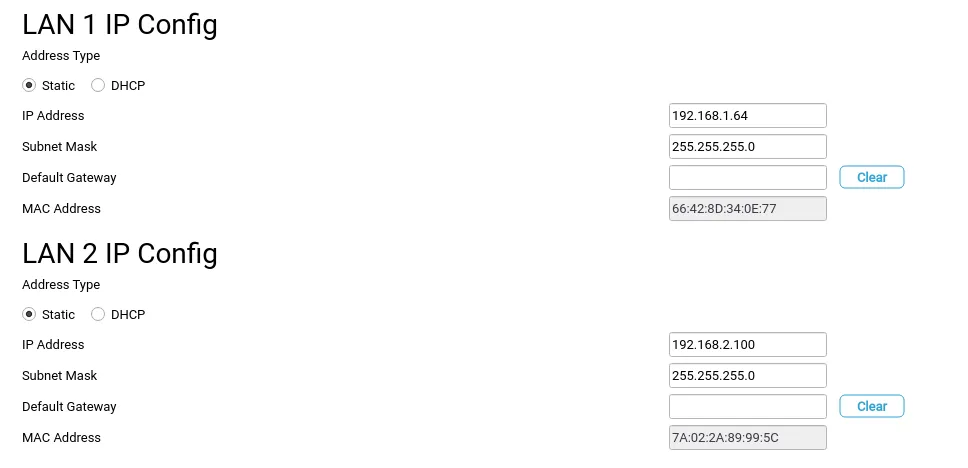

LAN IP Config

The LAN IP Config section configures the Ethernet ports on the Xpanel. All Xpanels will have two Ethernet ports except the 4-inch and -DE eXT2 models.

The IP address, subnet mask, and gateway can be individually configured. Otherwise, the Xpanel can use the DHCP protocol if your network provides it.

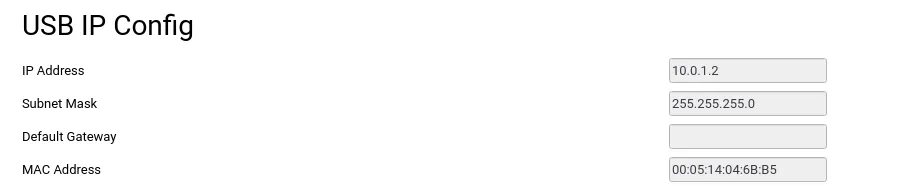

USB IP Config

The USB IP Config displays the IP used for downloading projects over USB mini-B or USB-C. This section cannot be configured.

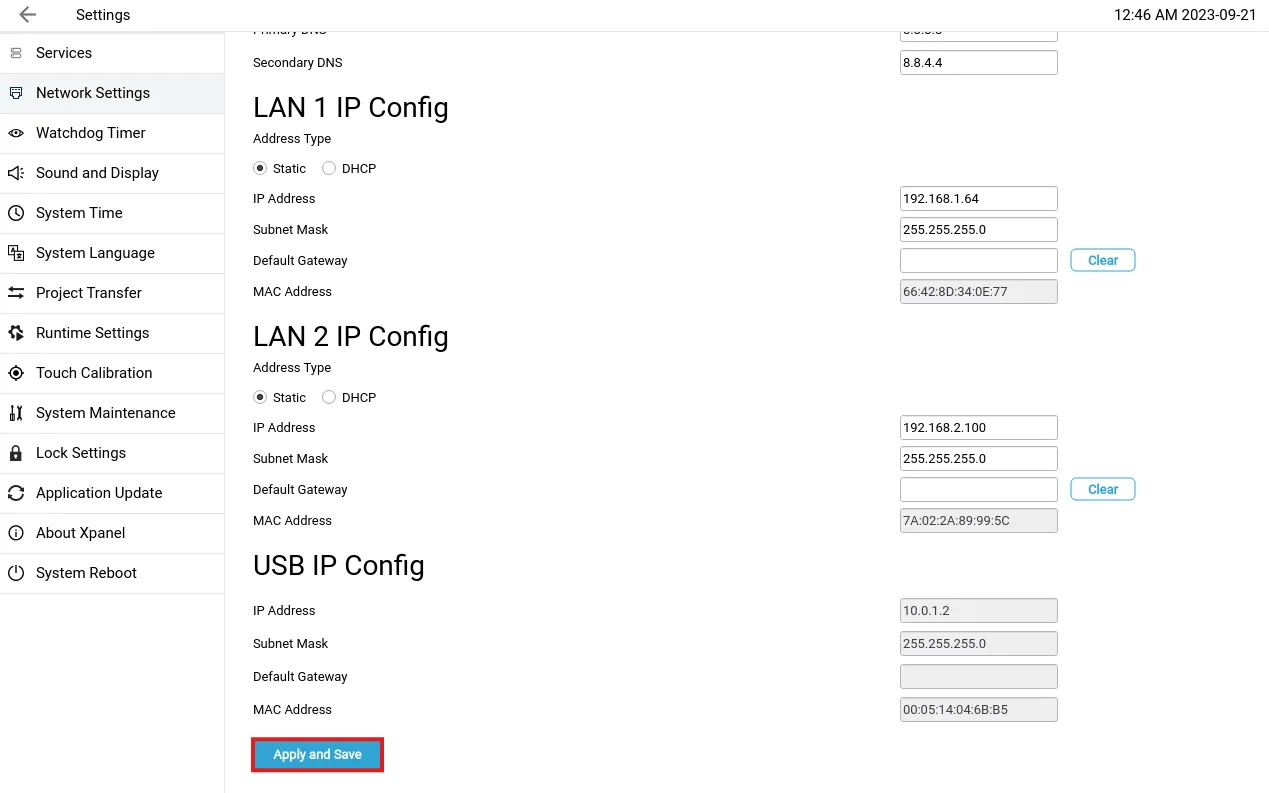

Save Changes

To save any changes to the network settings, scroll to the bottom of the page and click the Apply and Save button. If any changes are made and this button is not clicked, none of the changes will be saved.
