Label Object Introduction
Label Object Feature Description
Canvas has a Label object that allows users to display text content in a variety of styles. Users can customize the appearance, position, and actions related to the text object. Canvas provides a Numeric Label object, allowing users to display and edit numerical data with customized formatting. This object is particularly useful for representing numbers and performing calculations based on input.
Label Object Designer Functionality

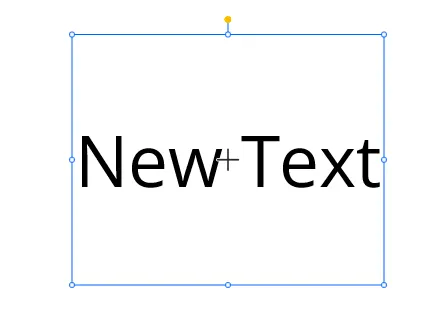

The Label object allows users to display any alphanumeric and special characters as text. To create a Label object, click Insert > Text, or select the Insert Label icon in the toolbar, and click and drag on the page to bring up the Label object.
Once inserted, users can edit the text by clicking on the object and typing the desired content.
Label Object Properties
Basic Properties

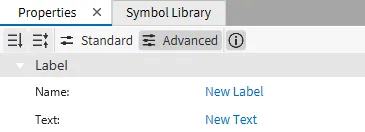

The Basic Properties section allows the user to modify the text displayed in the object and bind it to tags or other data sources. This section will be labeled "Label."
Appearance

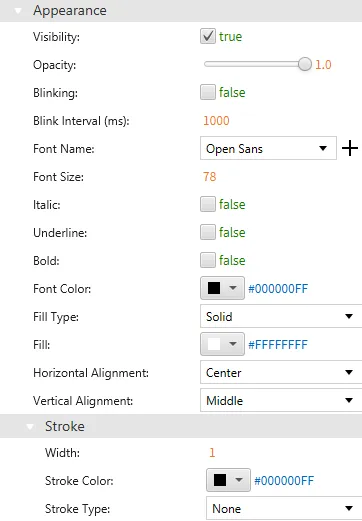

The Appearance section enables users to adjust visible characteristics of the text such as font style, color, size, and alignment.
Position

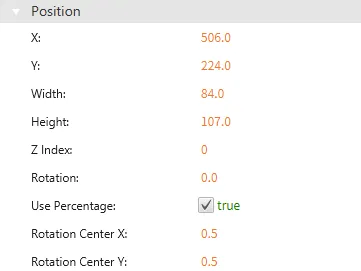

The Position section provides options to adjust the position, size, and rotation of the Label object.
Actions

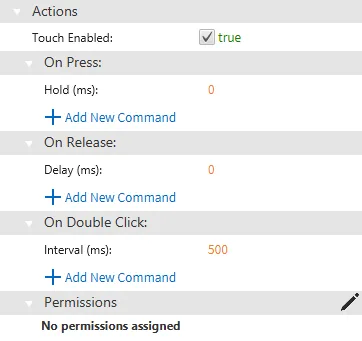

In the Actions tab, users can configure how the Label object responds to events such as pressing, releasing, or double-clicking.
Numeric Label Object Designer Functionality

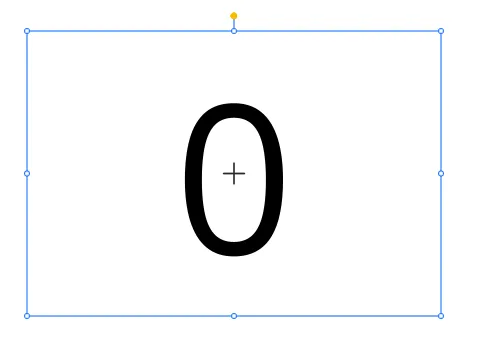

The Numeric Label object allows users to input only numerical characters into the field. To create a Numeric Label object, click Insert > Numeric Label, or select the Insert Numeric Label icon from the toolbar, and click and drag on the page to create the Numeric Label Object.
Once inserted, users can customize the numeric label content and configure how the numeric value is displayed.
Numeric Label Object Properties
Basic Properties

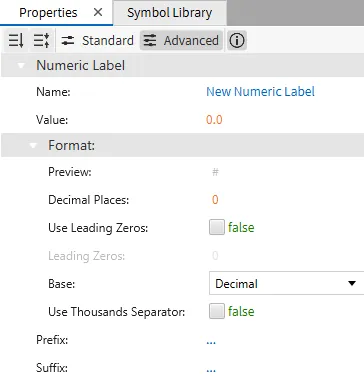

The Basic Properties section allows the user to modify the displayed numeric value, format it (e.g., decimal places), and bind it to a tag for real-time data updates. This section will be labeled "Numeric Label."
Appearance

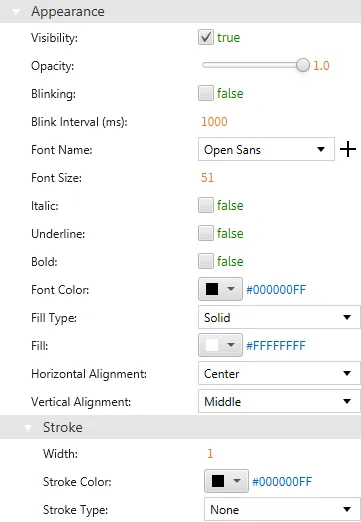

The Appearance section allows users to change the visible characteristics of the Numeric Label object, such as font style, size, color, and alignment.
Position

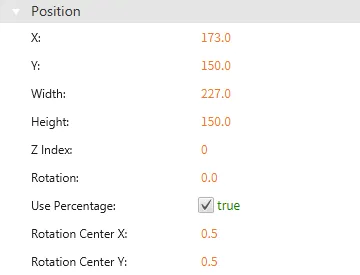

The Position section enables users to adjust the position, size, and rotation of the Numeric Label object.
Actions
In the Actions tab, users can configure how the Numeric Label object responds to various actions, such as pressing, releasing, or double-clicking.
