Exercise: Using Momentary and Action Buttons

Please follow the below exercise to understand Button functionality.

Configuration

The following configuration is used to set up this exercise.

Tag Configuration

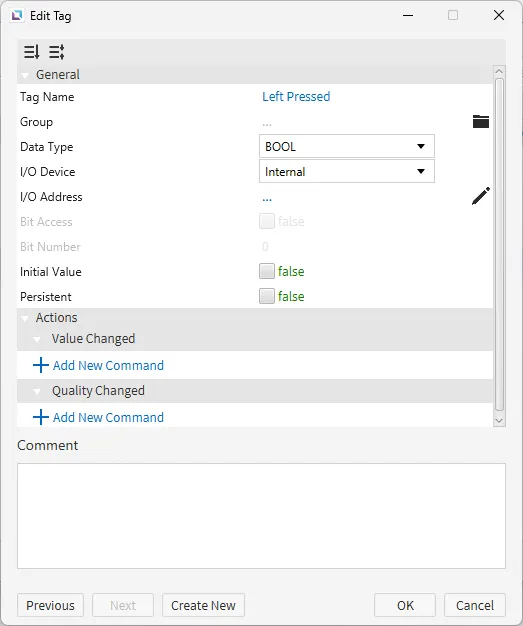

1. Create the following tags:
   1. Counting Down
      • Data type: BOOL
      • Initial value: false

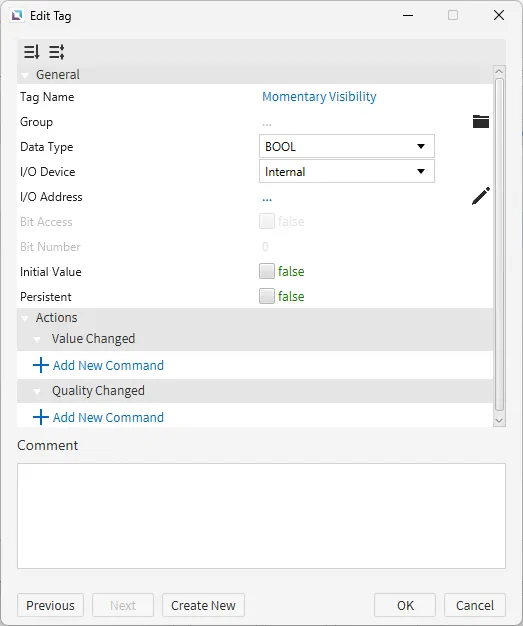

   2. Momentary Visibility
      • Data type: BOOL
      • Initial value: false

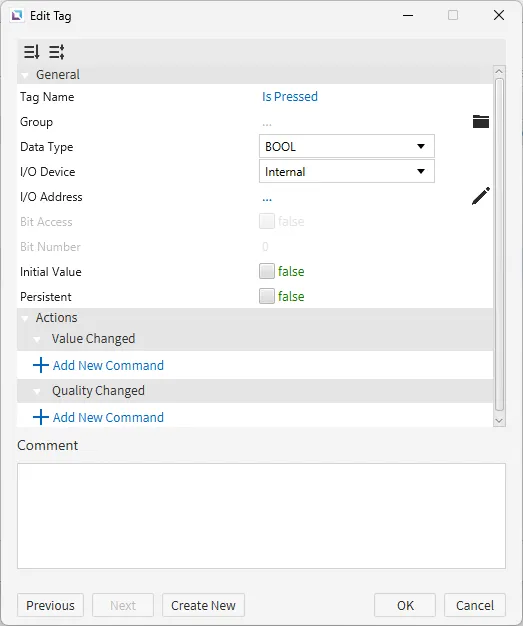

   3. Is Pressed
      • Data type: BOOL
      • Initial value: false
   4. Left Pressed
      • Data type: BOOL
      • Initial value: false
   5. Right Pressed
      • Data type: BOOL
      • Initial value: false

Script Configuration

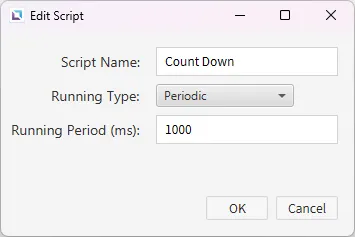

2. Create the following script:
   1. Count Down
      • Running type: Periodic

3. Paste the following code into the Count Down script.

if(tag.read("Right Pressed") || tag.read("Left Pressed") && !tag.read("Counting Down")) {

	var time = 10;
	tag.write("Counting Down", true);
	tag.write("Momentary Visibility", true);

	if (time > 0) {
	    for (time = 10; time > 0; time--) {
	        thread.sleep(1)
	    }
	}

	tag.write("Counting Down", false);
	tag.write("Momentary Visibility", false);
}

• This code will be used for the objects in the next section. If either the left or right button is pressed, a 10-second timer counts down and makes another button appear.

Project Configuration

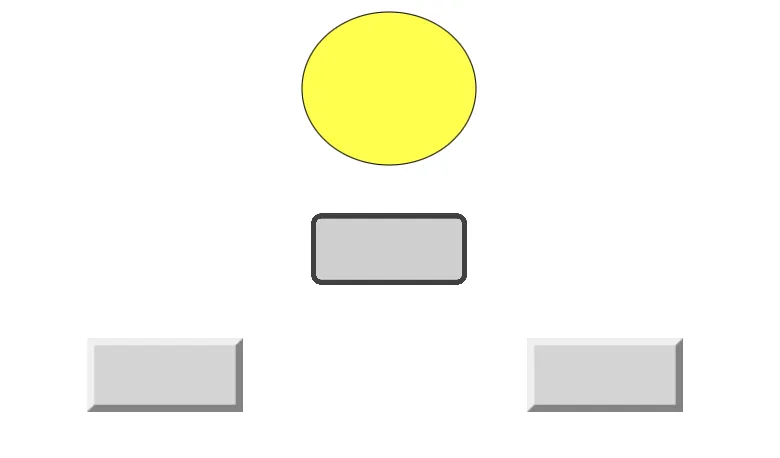

4. Draw 4 objects on the screen: an ellipse, one momentary button, and two action buttons.

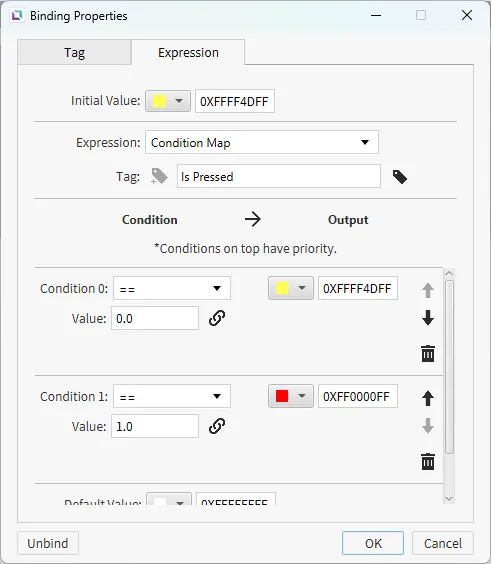

5. Select the ellipse object. Change the Fill type to the below condition map:

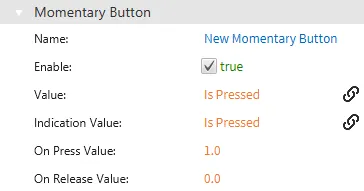

6. Smart bind (drag-and-drop) the Is Pressed tag onto the momentary button.

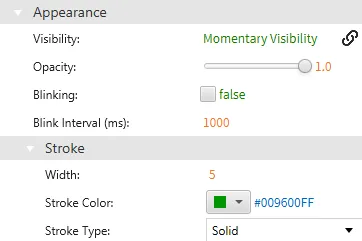

7. Under the visibility property of the momentary button, bind the Momentary Visibility tag to it.

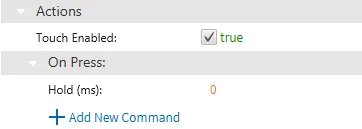

8. For the left and right action buttons, go to the Actions property, On Press, and select Add New Command.

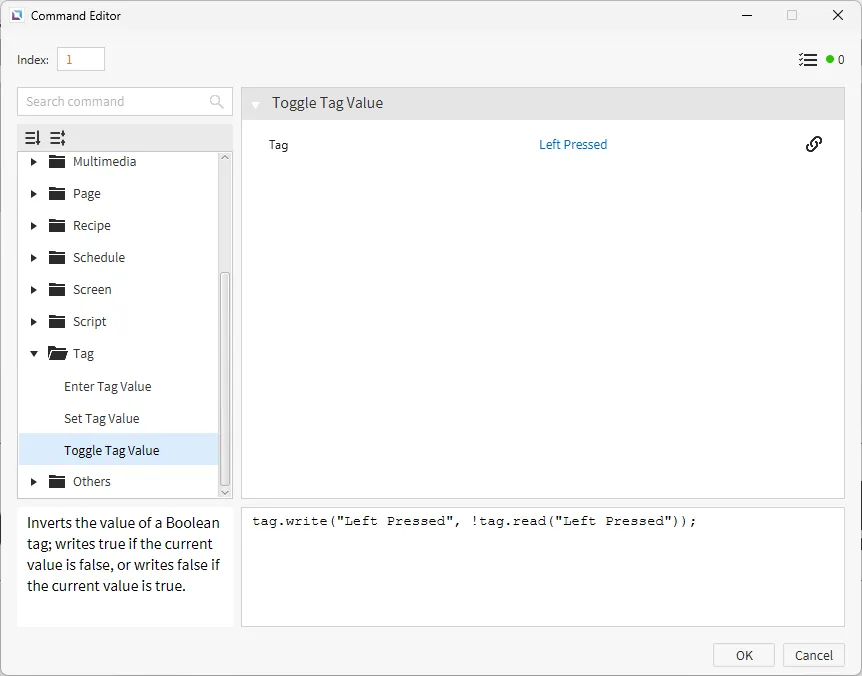

9. Add a new command and select Toggle Tag Value.
   • For the left action button, bind the Left Pressed tag to the command.
   • For the right action button, bind the Right Pressed tag to the command.

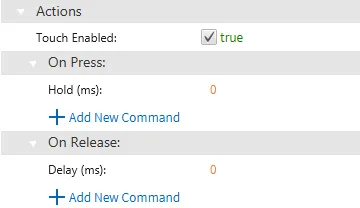

10. Repeat steps 7 and 8 for the On Release property of both the left and right action buttons.

Project Deployment

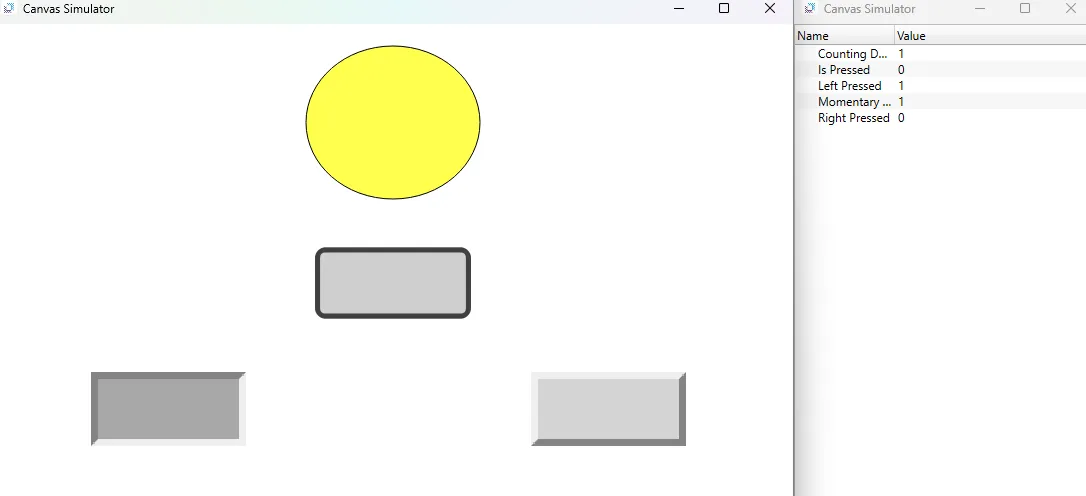

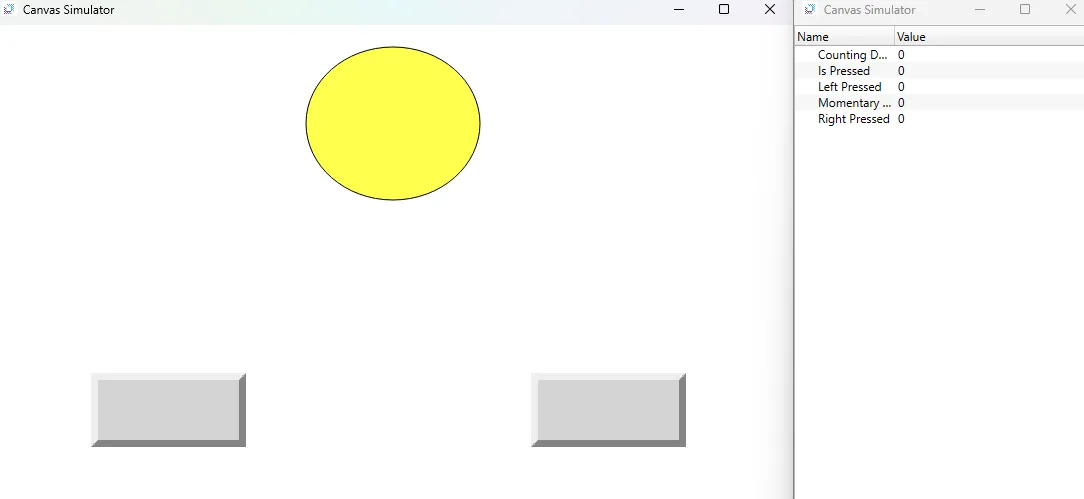

1. Click Tools > Launch Simulator to launch the Canvas Simulator.

2. Press either the left or right action button.

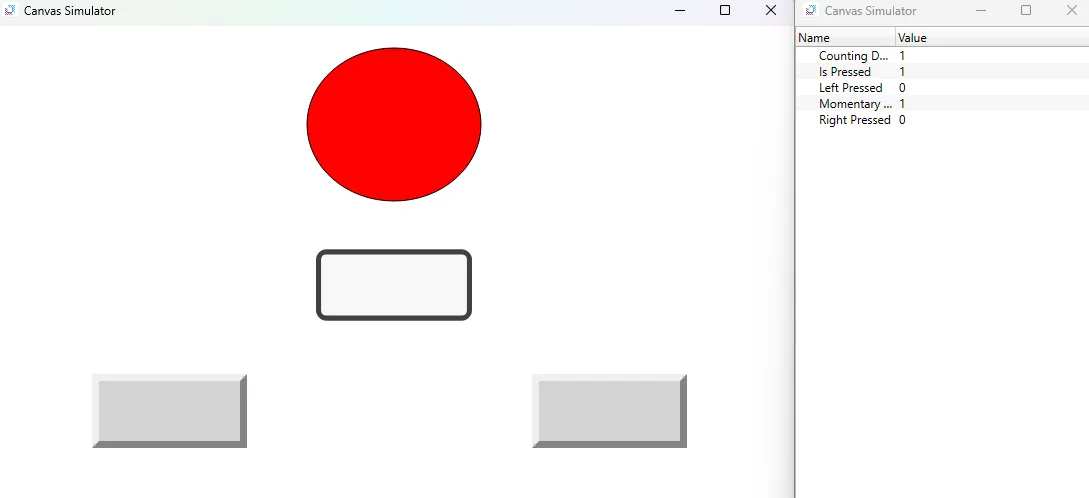

3. Press the momentary button that appears. The ellipse should now turn red.
