Checkbox Introduction

Checkbox Feature Description

Canvas provides a Checkbox object. It allows users to toggle the state of a Boolean tag by checking or unchecking a box.

Checkbox Designer Functionalities

Click Insert > Checkbox, or the Insert Checkbox icon on the toolbar, and click and drag on the page to bring up the checkbox object as shown below:

Properties

The Checkbox object can be customized based on specific properties.

To ensure the property windows are enabled, click View > Properties.

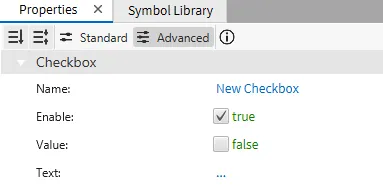

Basic Properties

The Basic Properties section allows users to change the name, enable or disable the checkbox, set its value and text. When the checkbox is enabled, users can change the value of the associated tag.

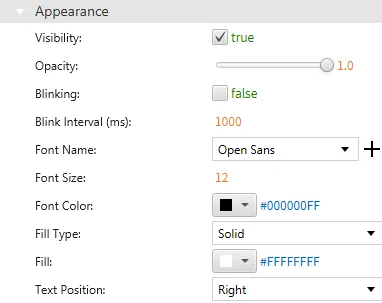

Appearance

The Appearance section enables the use of selections to alter visible characteristics.

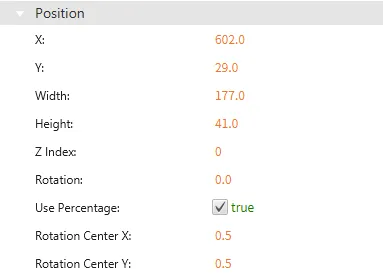

Position

The Position section provides adjustable properties that reshape or move the object.

Actions

Permissions can be assigned to the checkbox objects to allow the correct users to interact with them.
